8S-21S 24V 100A Smart BMS Battery Protection Board for LifePO4 Lithium Battery Pack with Balance Equalizer UART/RS485/CAN Communication Function Bluetooth APP Control
8S-21S 24V 100A Smart BMS Battery Protection Board for LifePO4 Lithium Battery Pack with Balance Equalizer UART/RS485/CAN Communication Function Bluetooth APP Control
8S-21S 24V 100A Smart BMS Battery Protection Board for LifePO4 Lithium Battery Pack with Balance Equalizer UART/RS485/CAN Communication Function Bluetooth APP Control
- 【High Integration & Precision Monitoring】This lifepo4 BMS adopts highly integrated design to realize ultra-high precision real-time monitoring. It can automatically identify the number of battery strings, flexibly support 8 to 21 strings configuration, maximum continuous current up to 100A, peak current up to 300A, tailored for LiFePO4. This protection board is very suitable for outdoor energy storage equipment, AGV intelligent vehicles, tourist buses, electric vehicles and low-speed vehicles and other high-current application scenarios.
- 【Multiple Protection Function】Our 8S-21S BMS not only has the basic protection of overcharge, overdischarge, overcurrent and short circuit, but also integrates the functions of balanced protection, and temperature protection. In addition, it is also equipped with a charging dual protection mechanism, in the case of overcharging the protection board and charger disconnect the input at the same time, eliminating the protection board battery pack overcharging hidden danger.
- 【Ultra High TVS Portection】The lithium battery protection board adopts the new TOLL wrapping technology, which effectively reduces the internal resistance and ensures high efficiency overcurrent. Built-in 5000W ultra-high-power TVS can easily cope with high-current impact, providing a solid protective barrier for the battery.
- 【Efficient Thermal Management】The BMS PCB protection board adopts CPU-level thermal conductive silicone grease, whose good thermal conductivity ensures that the heat is quickly transferred to the cooling system, enhancing the efficiency of thermal management.

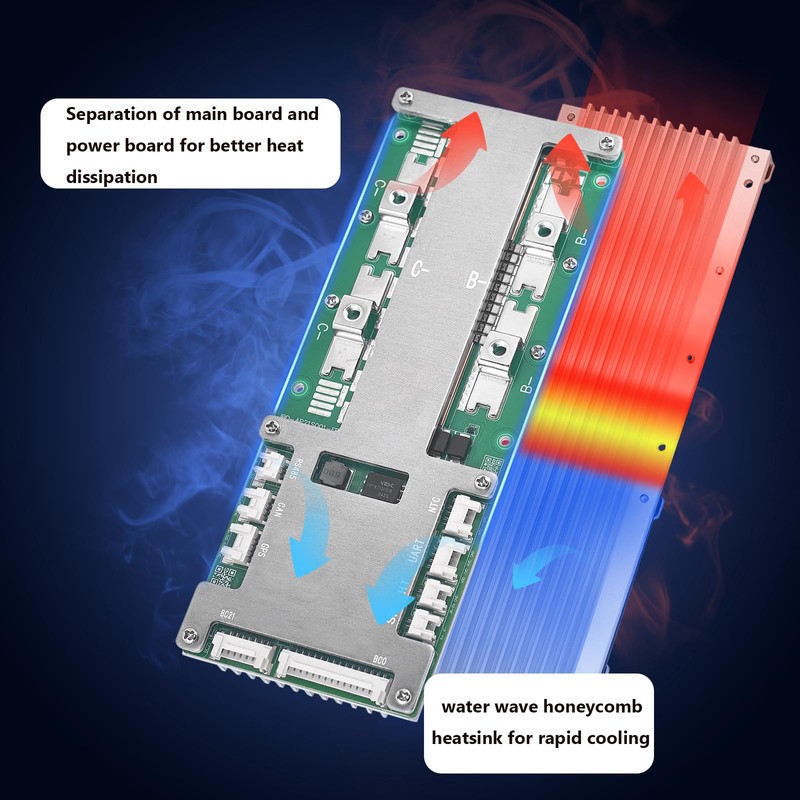

- 【Good Heat Dissipation】At the same time, the battery protection board adopts an innovative design to effectively isolate the main board from the power board, which significantly reduces heat transfer, lowers the system temperature rise, and extends the service life of the battery. The unique water wave honeycomb structure of the heat sink is not only attractive, but also achieves rapid cooling through the optimized airflow channels, which ensures stable battery temperature even under extreme conditions and ensures the safe and efficient operation of the system.

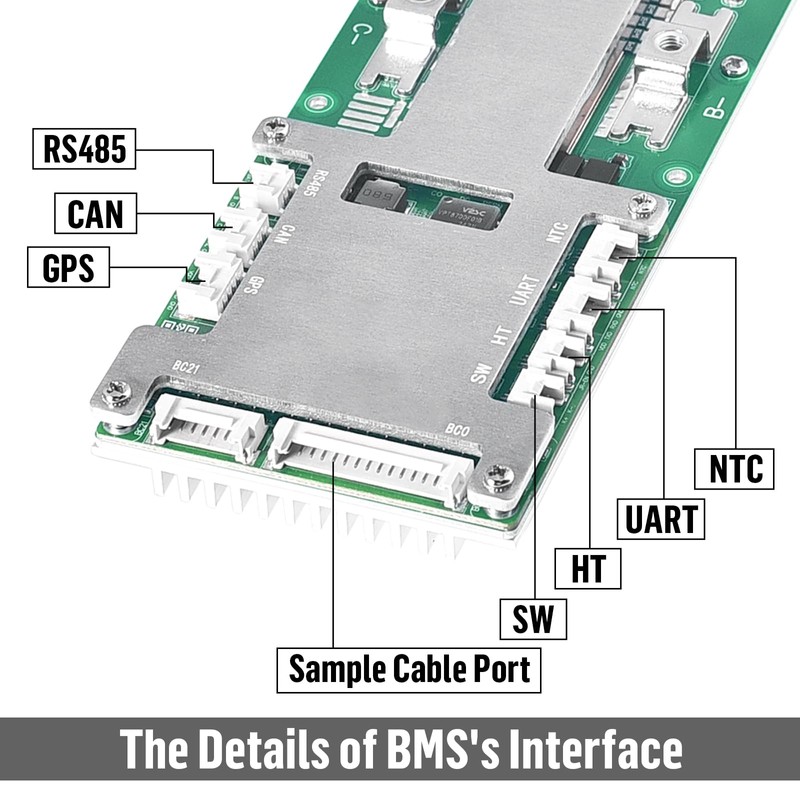

- 【Simplified Operation & Enhanced Communication】The innovative same port design allows charging and discharging to share the same interface, which greatly simplifies the operation process and reduces the complexity of cables and interfaces. In addition,the BMS feature CAN, RS485, UART communication interfaces, support simultaneous multi-channel communication and rich expansion applications.Can be connected to Bluetooth, PC Software, GPS, Heating modules and other accessories.(Modules / Accessories Not Included )
Brand: | Funnytek |
---|---|
Color: | silver & green |
Manufacturer: | Funnytek |
Part Number: | J8KV98H |
Isin: | IBDR7XSQCFSJ |

IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Package Includes:
1 x Battery Protection Board( 8S to 21S)
1 x Sample Cable
Specification:
Material: PCB, Aluminum Plate
Battery Type : LiFePO4 batteries
Battery String: 8S-21S
Continuous Charging Current: 100A
Continuous Discharging Current:100A
Peak Current: 300A
Peak Current Duration: 1 Second
Circuit Resistance:10mR
Working temperature: -30°C ~+75°C
Interface Type: Charge and Discharge are both at the same port
Size: 202*76*18mm / 7.95*2.99*0.71in
Comprehensive Function:
Pre-charge protection
Overcharge protection
Over-discharge protection
Over-current protect
Temperature Control
Balance Function
Balanced protection optimizes the performance of the battery pack through precision circuitry, balances charging and extends the overall life of the battery.
Temperature protection ensures battery safety by disconnecting the battery when the temperature exceeds the specified range.
