Chazcool DC 12V Timer Switch, Timer Relay Switch Module, Adjustable 0 to 25 Second Trigger Turn Off Module for Car Lamp Delay
Chazcool DC 12V Timer Switch, Timer Relay Switch Module, Adjustable 0 to 25 Second Trigger Turn Off Module for Car Lamp Delay
Chazcool DC 12V Timer Switch, Timer Relay Switch Module, Adjustable 0 to 25 Second Trigger Turn Off Module for Car Lamp Delay
Product Overview
- Trigger: 12V triggering time-delay normally open relay module, the module repeats the trigger effectively, can be triggered high
- Adjustable Time：Delay time can be adjusted by potentiometer (clockwise direction decreases, counterclockwise direction increases), the default is 0-25 seconds, if you need a longer time, just replace the larger capacitor or potentiometer
- Protection Function: The 12 volt timer switch power supply terminals are protected by anti-reverse diode
- Easy to Use: Timer relay switch module is easy to operate. Simply power on the module and the relay will energize immediately. If power is not available, the terminals can be connected to the COM terminal
- Applications: Time relay switch can be used for robotics, headlight delay, intelligent product development, automation equipment, PLC development, smart home, anti-theft alarm delay and electronic product development
| Brand: | Chazcool |
|---|---|
| Manufacturer: | Chazcool |
| Part Number: | 6QJ7TQY |
| Isin: | ISKXZ7XHZO1R |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
Product Overview
- Trigger: 12V triggering time-delay normally open relay module, the module repeats the trigger effectively, can be triggered high
- Adjustable Time：Delay time can be adjusted by potentiometer (clockwise direction decreases, counterclockwise direction increases), the default is 0-25 seconds, if you need a longer time, just replace the larger capacitor or potentiometer
- Protection Function: The 12 volt timer switch power supply terminals are protected by anti-reverse diode
- Easy to Use: Timer relay switch module is easy to operate. Simply power on the module and the relay will energize immediately. If power is not available, the terminals can be connected to the COM terminal
- Applications: Time relay switch can be used for robotics, headlight delay, intelligent product development, automation equipment, PLC development, smart home, anti-theft alarm delay and electronic product development
| Brand: | Chazcool |
|---|---|
| Manufacturer: | Chazcool |
| Part Number: | 6QJ7TQY |
| Isin: | ISKXZ7XHZO1R |
Feature:
12V trigger delay normally open relaymodule, repeatedly triggering effective.
Delay time can be adjusted by potentiometer(clockwise to reduce, anticlockwise to increase),default 0-25 seconds, if you need more time, simply replace a largercapacitance or potentiometer.
Power supply terminal has anti-reversediode for protection.
Trigger signal is suitable for industrial control, the module can be triggeredrepeatedly.
It can be used in robotics, car lamp delay,intelligent product development, automation equipment, PLC development,intelligent home, burglar alarm delay, and development of electronic.
Specification:
Operating Voltage: DC 12V
Load Capacity: AC 250V 10A; DC 30V 10A
Delay Time: T(S)=1.1*R(Ω)*C(f); e.g.if capacitor is 47uf, resistor is 500KΩ, T=1.1*0.000047*500000=25.85sec.

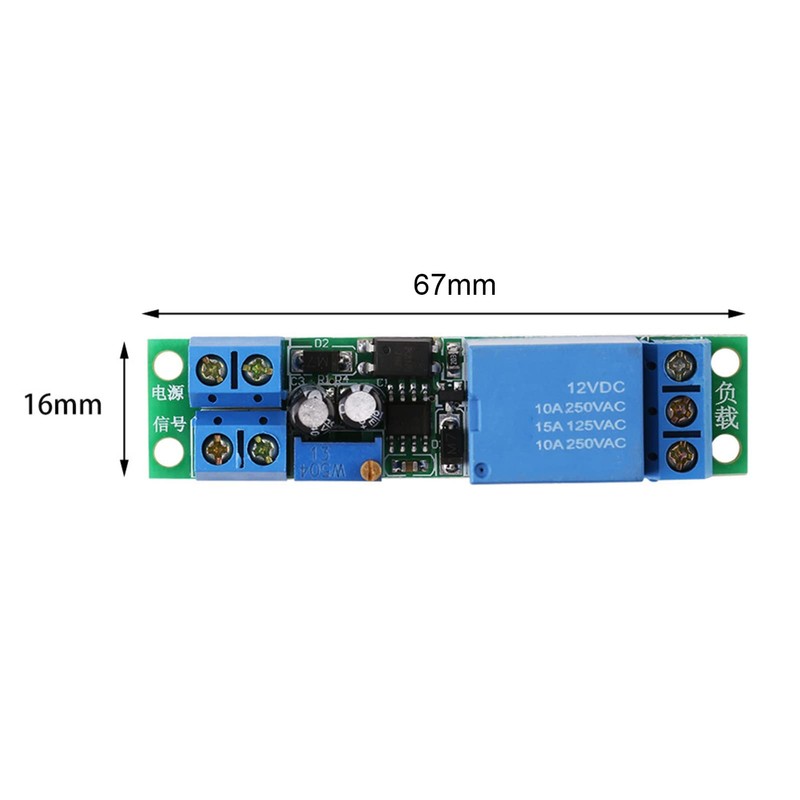

Size:Approx. 67 x 16mm/2.64 x 0.62

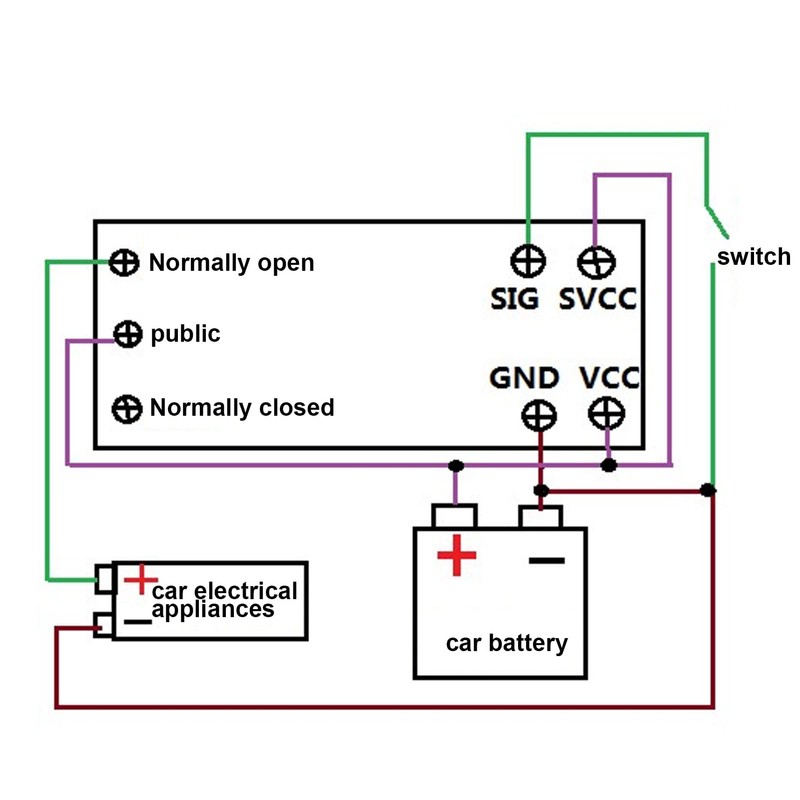

Working Principle:
1. Power on the module (12V or 5V) and relayis energized immediately. N.O. terminal is connected to COM terminal.
2. Relay is dis-energized after 0 to 25seconds. N.C. terminal is connected to COM terminal.
3. Relay keeps dis-energized until there isan external trigger signal.
4. If there is always trigger signal, relaywill keep energized until trigger signal disappears, then dis-energized after 0to 25 seconds. Now N.C. terminal is connected to COM terminal.
Package Includes:
1 x Timer Relay Module
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
12V trigger delay normally open relaymodule, repeatedly triggering effective.
Delay time can be adjusted by potentiometer(clockwise to reduce, anticlockwise to increase),default 0-25 seconds, if you need more time, simply replace a largercapacitance or potentiometer.
Power supply terminal has anti-reversediode for protection.
Trigger signal is suitable for industrial control, the module can be triggeredrepeatedly.
It can be used in robotics, car lamp delay,intelligent product development, automation equipment, PLC development,intelligent home, burglar alarm delay, and development of electronic.
Specification:
Operating Voltage: DC 12V
Load Capacity: AC 250V 10A; DC 30V 10A
Delay Time: T(S)=1.1*R(Ω)*C(f); e.g.if capacitor is 47uf, resistor is 500KΩ, T=1.1*0.000047*500000=25.85sec.
Size:Approx. 67 x 16mm/2.64 x 0.62
Working Principle:
1. Power on the module (12V or 5V) and relayis energized immediately. N.O. terminal is connected to COM terminal.
2. Relay is dis-energized after 0 to 25seconds. N.C. terminal is connected to COM terminal.
3. Relay keeps dis-energized until there isan external trigger signal.
4. If there is always trigger signal, relaywill keep energized until trigger signal disappears, then dis-energized after 0to 25 seconds. Now N.C. terminal is connected to COM terminal.
Package Includes:
1 x Timer Relay Module
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
