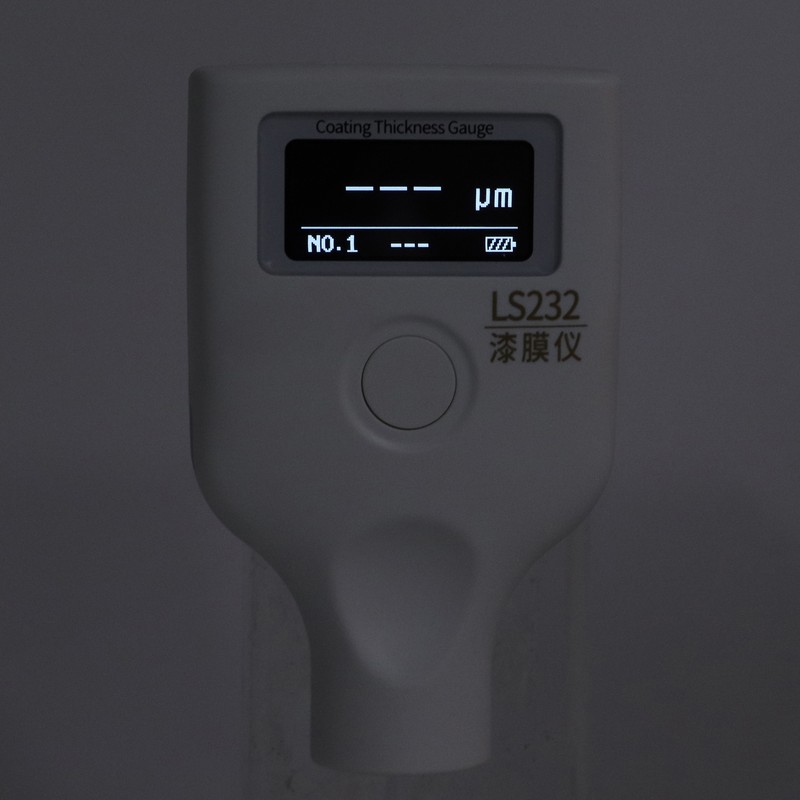

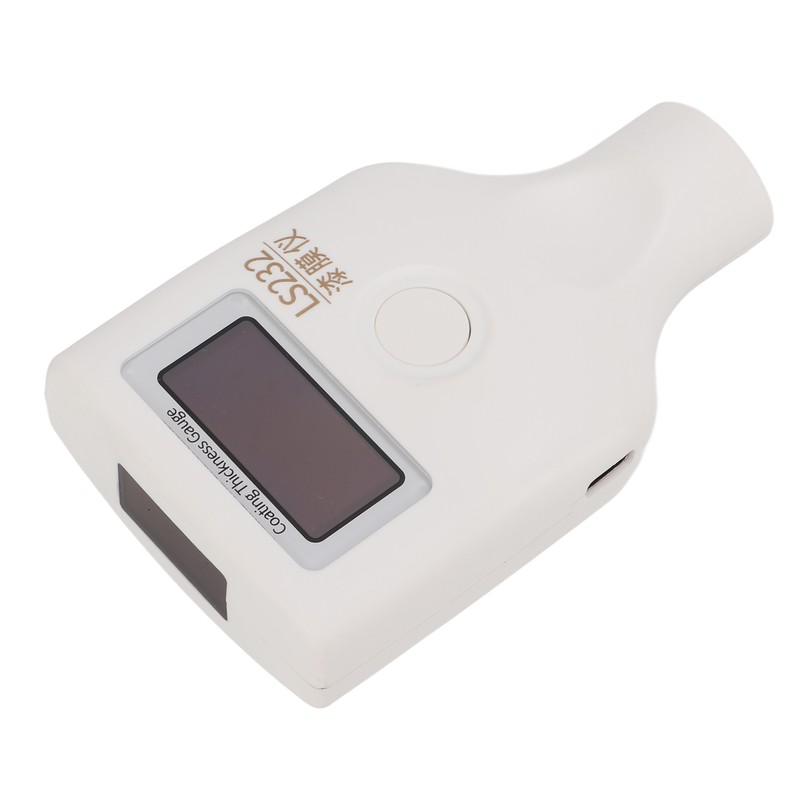

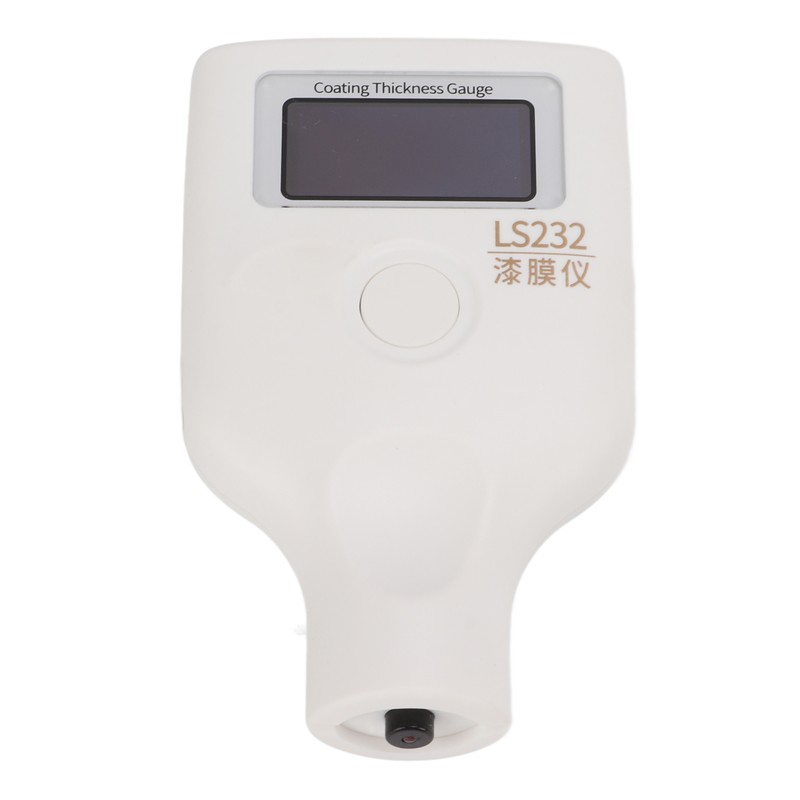

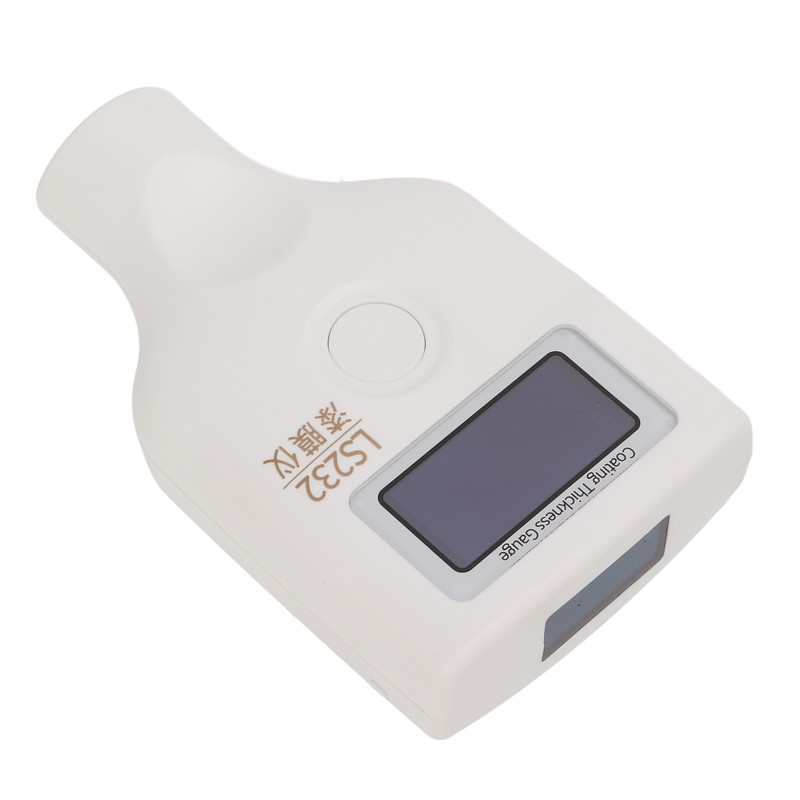

Coating Thickness Meter LS232 Low Temperature Resistant High Accuracy Paint Thickness Gauge
Coating Thickness Meter LS232 Low Temperature Resistant High Accuracy Paint Thickness Gauge
Coating Thickness Meter LS232 Low Temperature Resistant High Accuracy Paint Thickness Gauge
Product Overview
1、Data Measure: The measurement is completed in 0.5 seconds, and the low temperature display is normal in the ‑40℃ low temperature environment 2、Real Time Test Data: Display measurement value, different angles of measurement are convenient to view the real time test data 3、Measuring Range: Ensures a long and effective use of the instrument. Using advanced digital probe technology, digital signal processing is completed directly on the probe, the probe is not susceptible to interference and provides excellent test accuracy 4、Function: Iron and aluminum dual probe, automatic identification of iron, aluminum and nonmetal , can be fast automatic conversion. "Fe", "NFe", "Fe/NFe" three measurement modes can be set 5、Measuring Range: It can measure the thickness of non magnetic coating on magnetic metal substrate such as steel and non conductive coating on non magnetic metal substrate such as copper and aluminum
| Isin: | IGF4AHTMVUCY |
|---|
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
Product Overview
1、Data Measure: The measurement is completed in 0.5 seconds, and the low temperature display is normal in the ‑40℃ low temperature environment 2、Real Time Test Data: Display measurement value, different angles of measurement are convenient to view the real time test data 3、Measuring Range: Ensures a long and effective use of the instrument. Using advanced digital probe technology, digital signal processing is completed directly on the probe, the probe is not susceptible to interference and provides excellent test accuracy 4、Function: Iron and aluminum dual probe, automatic identification of iron, aluminum and nonmetal , can be fast automatic conversion. "Fe", "NFe", "Fe/NFe" three measurement modes can be set 5、Measuring Range: It can measure the thickness of non magnetic coating on magnetic metal substrate such as steel and non conductive coating on non magnetic metal substrate such as copper and aluminum
| Isin: | IGF4AHTMVUCY |
|---|
1、Data Measure: The measurement is completed in 0.5 seconds, and the low temperature display is normal in the ‑40℃ low temperature environment 2、Real Time Test Data: Display measurement value, different angles of measurement are convenient to view the real time test data 3、Measuring Range: Ensures a long and effective use of the instrument. Using advanced digital probe technology, digital signal processing is completed directly on the probe, the probe is not susceptible to interference and provides excellent test accuracy 4、Function: Iron and aluminum dual probe, automatic identification of iron, aluminum and nonmetal , can be fast automatic conversion. "Fe", "NFe", "Fe/NFe" three measurement modes can be set 5、Measuring Range: It can measure the thickness of non magnetic coating on magnetic metal substrate such as steel and non conductive coating on non magnetic metal substrate such as copper and aluminum
More Information
Item Type: Coating Thickness Meter
Model: LS232
Material: ABS, Rubine
Battery: 2 x AAA 1.5V(Not Included)
Size: Approx. 60mm x 100mm / 2.4 x 3.9in

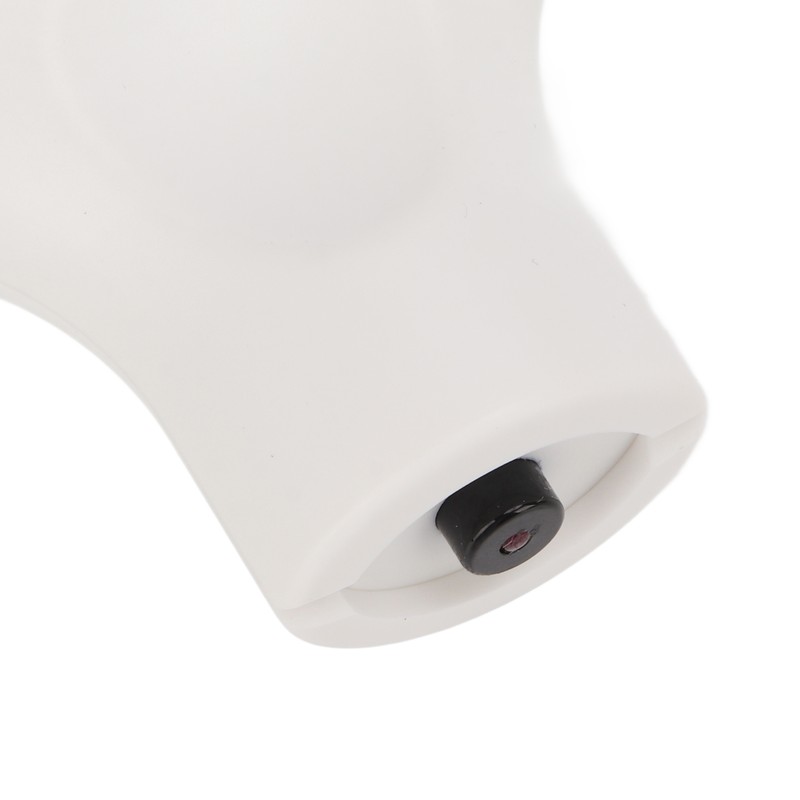

Probe Tip: Rubine Fixation
Measuring Principle: Fe: Hall Effect / NFe: Eddy Current
Probe Type: Built in One
Measuring Range:0.0-2000μm
Resolving Power:
0.1μm:(0μm-99.9μm)
1μm:(100μm-999μm)
0.01mm:(1.00mm-2.00mm)
Measurement Accuracy: ≤±(3% Reading+2μm)
Unit: μm/mil
Measurement Interval: 0.5s
Minimum Measurement Area:φ=25mm
Minimum Radius of Curvature:Convex: 5mm/Concave Face：25mm
Minimum Base Thickness: Fe:0.2mm/NFe:0.05mm

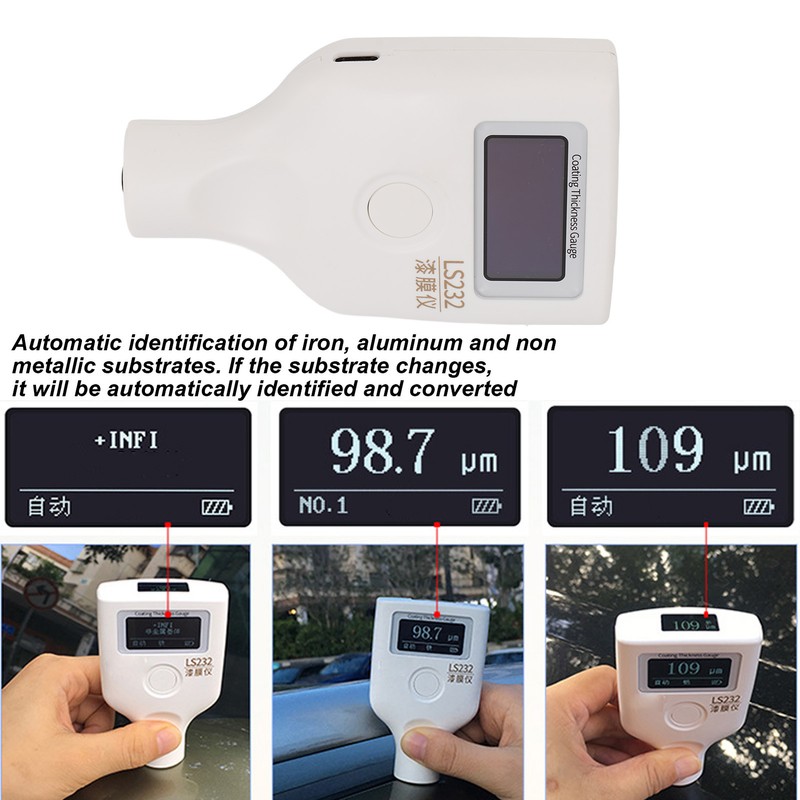

Measurement Mode:"Fe","NFe","Fe/NFe"

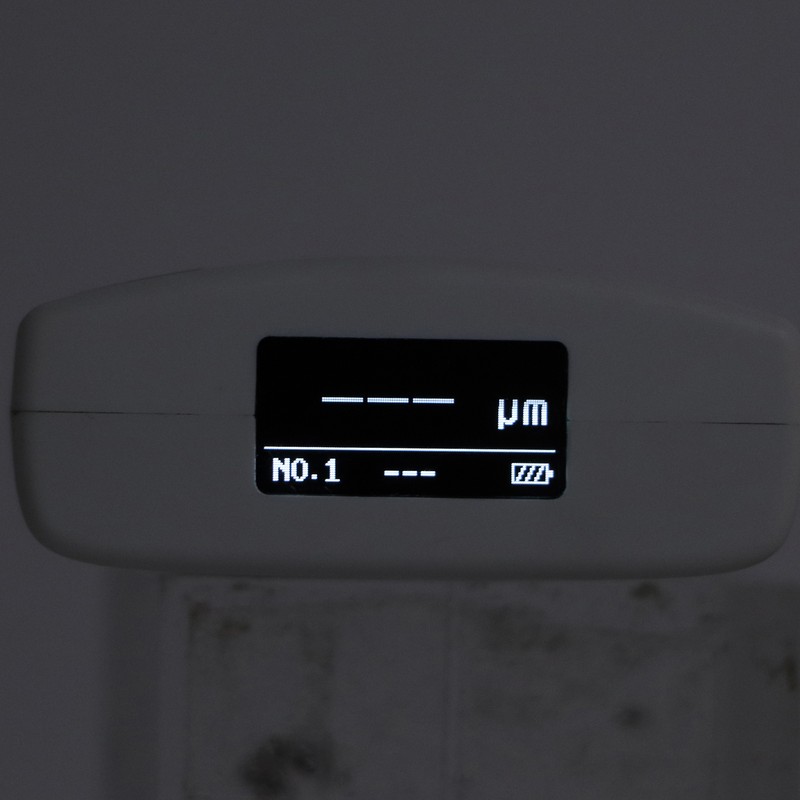

Show:2pcs x 128 x 64 O'clock For OLED
Power Supply:2 x 1.5V AAA Alkaline Batteries (Excluding)

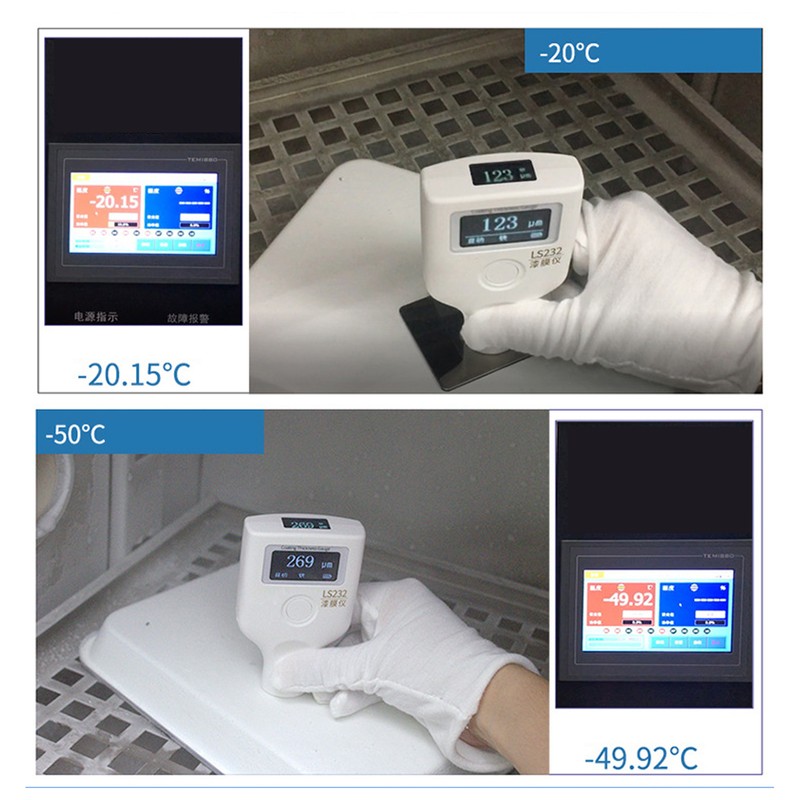

Range of Working Temperature:-40℃-50℃
Storage Temperature Range:-50℃-60℃
Host Size:100 x 60 x 24mm(Approx.100 x 60 x 24mm / 2.4 x 3.9 x 0.9in)
Weight (including Battery): 80g
2.2 Language Setting
The Instrument Has Chinese and English Display, and the Factory Default is Chinese Display.
Setting Method: in the State of Shutdown, Press the Long Key to Enter the Setting Interface, Press the Short Key to Select "language", Press the Long Key for 3 Seconds to Enter the Chinese and English Selection Interface, Press the Short Key to Select the Required Language, Press the Long Key for 3 Seconds, the Language Setting is Completed, and Enter the Measurement Interface.
2.3 Company Setting
The Instrument Can Be Set to Metric or Imperial Units, and the Factory Default is Metric Units μ M。
Setting Method: in the State of Shutdown, Press the Long Key to Enter the Setting Interface, Press the Short Key to Select "unit", Press the Long Key for 3 Seconds to Enter the Unit Selection Interface, and then Press the Short Key to Select the Required Unit. Press the Long Key for 3 Seconds to Complete the Unit Setting and Enter the Measurement Interface.

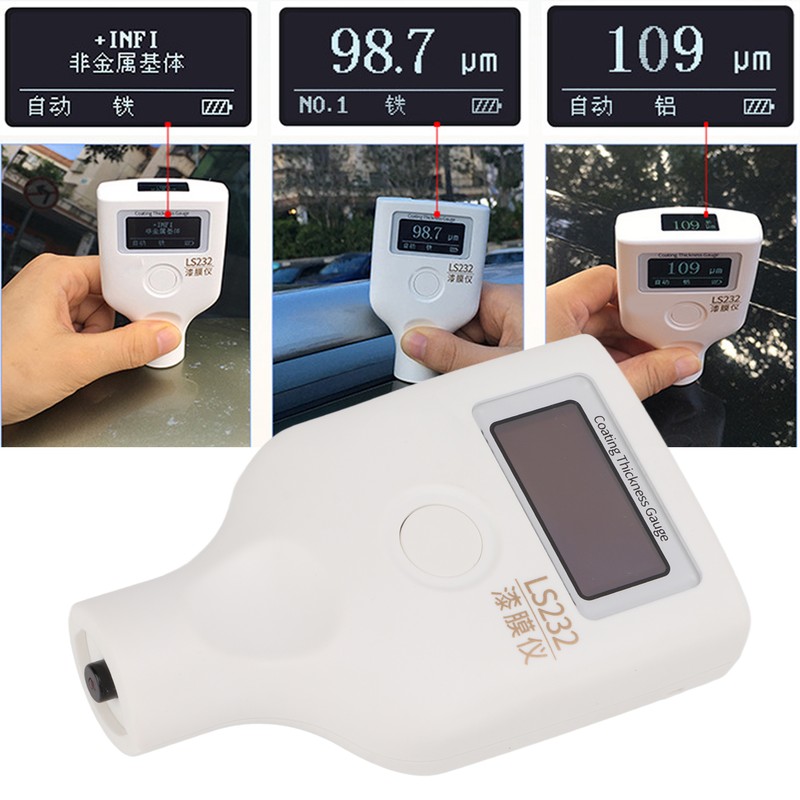

3. Measurement
(1) Hold the Position of the Anti Skid Flute at the Lower Part of the Instrument with Your Fingers.
(2) Press the Instrument Probe Vertically on the Face of the Measured Object to Keep the Probe Stable Without Tilting or Shaking. the Measurement Results Will Appear on the Screen with a Buzzer Prompt.
(3) to Continue the Measurement, Lift the Probe Away from the Object to Be Measured, and then Repeat Step (2).
4. View Measurement Records
In Measurement Mode, Short Press to View Historical Data. the Instrument Stores 9 Groups of Data in Total. when More Than 9 Groups of Data Are Stored, the Oldest Recorded Value Will Be Automatically Deleted. No. 1 is the Latest Test Data, and the Recorded Data Will Not Be Lost After Shutdown.
Model: LS232
Material: ABS, Rubine
Battery: 2 x AAA 1.5V(Not Included)
Size: Approx. 60mm x 100mm / 2.4 x 3.9in
Probe Tip: Rubine Fixation
Measuring Principle: Fe: Hall Effect / NFe: Eddy Current
Probe Type: Built in One
Measuring Range:0.0-2000μm
Resolving Power:
0.1μm:(0μm-99.9μm)
1μm:(100μm-999μm)
0.01mm:(1.00mm-2.00mm)
Measurement Accuracy: ≤±(3% Reading+2μm)
Unit: μm/mil
Measurement Interval: 0.5s
Minimum Measurement Area:φ=25mm
Minimum Radius of Curvature:Convex: 5mm/Concave Face：25mm
Minimum Base Thickness: Fe:0.2mm/NFe:0.05mm
Measurement Mode:"Fe","NFe","Fe/NFe"
Show:2pcs x 128 x 64 O'clock For OLED
Power Supply:2 x 1.5V AAA Alkaline Batteries (Excluding)
Range of Working Temperature:-40℃-50℃
Storage Temperature Range:-50℃-60℃
Host Size:100 x 60 x 24mm(Approx.100 x 60 x 24mm / 2.4 x 3.9 x 0.9in)
Weight (including Battery): 80g
2.2 Language Setting
The Instrument Has Chinese and English Display, and the Factory Default is Chinese Display.
Setting Method: in the State of Shutdown, Press the Long Key to Enter the Setting Interface, Press the Short Key to Select "language", Press the Long Key for 3 Seconds to Enter the Chinese and English Selection Interface, Press the Short Key to Select the Required Language, Press the Long Key for 3 Seconds, the Language Setting is Completed, and Enter the Measurement Interface.
2.3 Company Setting
The Instrument Can Be Set to Metric or Imperial Units, and the Factory Default is Metric Units μ M。
Setting Method: in the State of Shutdown, Press the Long Key to Enter the Setting Interface, Press the Short Key to Select "unit", Press the Long Key for 3 Seconds to Enter the Unit Selection Interface, and then Press the Short Key to Select the Required Unit. Press the Long Key for 3 Seconds to Complete the Unit Setting and Enter the Measurement Interface.
3. Measurement
(1) Hold the Position of the Anti Skid Flute at the Lower Part of the Instrument with Your Fingers.
(2) Press the Instrument Probe Vertically on the Face of the Measured Object to Keep the Probe Stable Without Tilting or Shaking. the Measurement Results Will Appear on the Screen with a Buzzer Prompt.
(3) to Continue the Measurement, Lift the Probe Away from the Object to Be Measured, and then Repeat Step (2).
4. View Measurement Records
In Measurement Mode, Short Press to View Historical Data. the Instrument Stores 9 Groups of Data in Total. when More Than 9 Groups of Data Are Stored, the Oldest Recorded Value Will Be Automatically Deleted. No. 1 is the Latest Test Data, and the Recorded Data Will Not Be Lost After Shutdown.
Notice
1. It is strictly forbidden to slide the probe on the face of the car, which will cause damage to the car paint and instruments.
2. Ensure that the car paint is clean. Dust and soil on the paint may affect the measurement accuracy.3. If the battery sign of the instrument is blank, replace the battery.
4. The device is delivered without batteries
