DIHOOL DC Switch Circuit Breaker 40 A 2-Pin with 3 Modules Sub-Distribution Surface-Mounted IP65

Brand: DIHOOL

Product Overview

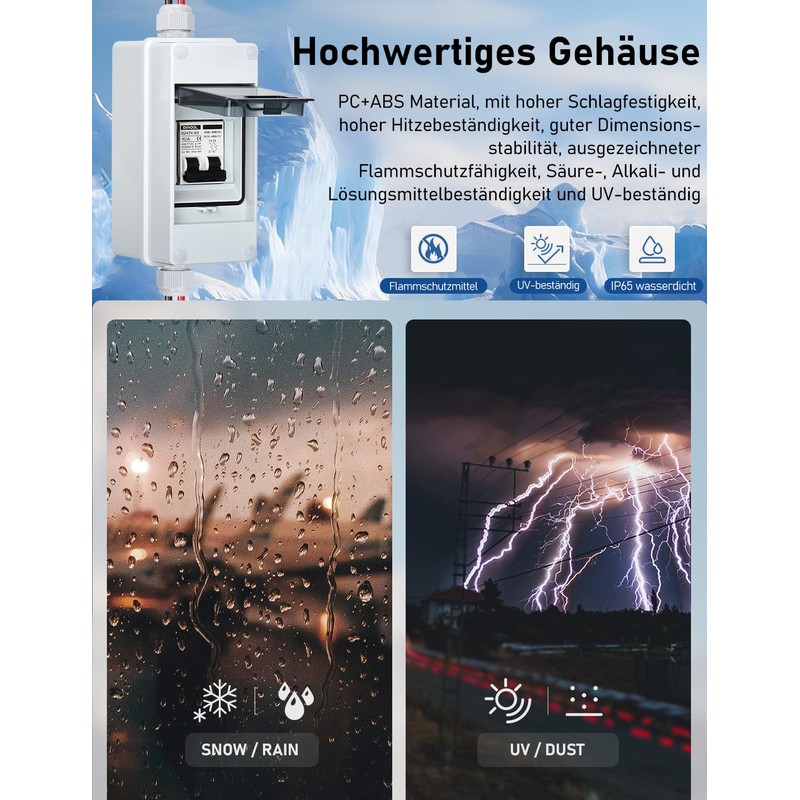

  • Sub-distribution: PC + ABS material, with high impact resistance, high heat resistance, good dimensional stability, excellent flame retardant, acid, alkali and solvent resistance and UV resistant. The transparent cover also makes it easy to check the status of the circuit breaker. 3 module sub-distribution. Larger space than conventional 2 module sub-distribution, convenient for wiring and installation
  • DC switch: built-in magnetic system to achieve high arc extinguishing and a flame retardant shell, silver contacts, sufficient pure copper coils to ensure its high quality. The B curve design can be applied to DC12V-400V DC and AC90V-440V.

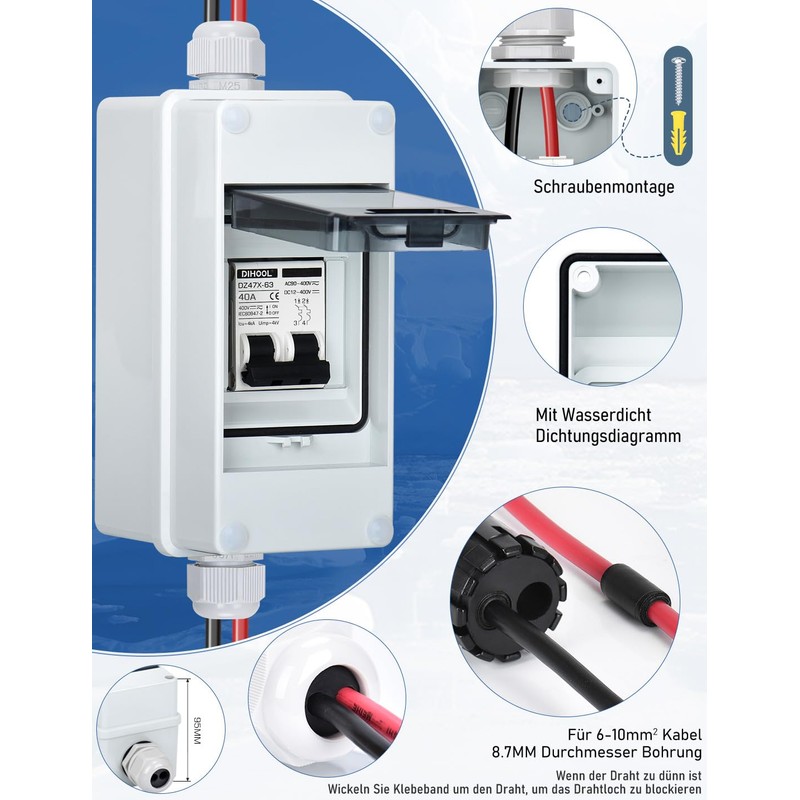

  • Cable gland: PG cable gland with two holes allows the positive and negative line to be connected to the circuit breaker, suitable for cables with a diameter of 4-6 mm such as 13-10awg cables.
  • Certificate: DIHOOL brand CE certification
  • Gift: Contains electrical tape that can be wrapped around the cable and then makes it better sealing performance through the holes in the cable gland. Four wiring terminals make it easier and more reliable to connect the wires to the circuit breaker
Brand: DIHOOL
Size: 40A
Color: small crate
Manufacturer: DIHOOL
Part Number: 9Y3V35M
Isin: IG9IH4L3KQDM

$52.09

  • Free shipping in US
  • $14.5 Extended Delivery from Germany
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

More seller options

Starting from

Compare all sellers
scroll to top arrow
DIHOOL DC Switch Circuit Breaker 40 A 2-Pin with 3 Modules Sub-Distribution Surface-Mounted IP65

DIHOOL DC Switch Circuit Breaker 40 A 2-Pin with 3 Modules Sub-Distribution S...

$52.09

Product Overview

  • Sub-distribution: PC + ABS material, with high impact resistance, high heat resistance, good dimensional stability, excellent flame retardant, acid, alkali and solvent resistance and UV resistant. The transparent cover also makes it easy to check the status of the circuit breaker. 3 module sub-distribution. Larger space than conventional 2 module sub-distribution, convenient for wiring and installation
  • DC switch: built-in magnetic system to achieve high arc extinguishing and a flame retardant shell, silver contacts, sufficient pure copper coils to ensure its high quality. The B curve design can be applied to DC12V-400V DC and AC90V-440V.
  • Cable gland: PG cable gland with two holes allows the positive and negative line to be connected to the circuit breaker, suitable for cables with a diameter of 4-6 mm such as 13-10awg cables.
  • Certificate: DIHOOL brand CE certification
  • Gift: Contains electrical tape that can be wrapped around the cable and then makes it better sealing performance through the holes in the cable gland. Four wiring terminals make it easier and more reliable to connect the wires to the circuit breaker
Brand: DIHOOL
Size: 40A
Color: small crate
Manufacturer: DIHOOL
Part Number: 9Y3V35M
Isin: IG9IH4L3KQDM

Model: HT3 DZ47X 40A.
Rated operating voltage: AC90~125V / DC12~400V.
Applicable cable: 4-6mm diameter cable, 13-10AWG cable
Poles: 2P
Box: IP65 waterproof, ABS material rated current: 40A.
Operating frequency: 50/60Hz.
Breaking capacity: 4kA Ics=Icu
Trigger characteristic: B.
Mechanical life: 10000 times.
Electrical life: 4000 times.
A installation method: 35mm DIN rail
Standard: IEC60898 / GB10936.
Working temperature: -30°C ~ +80°C.
Working height: 2000 metres.

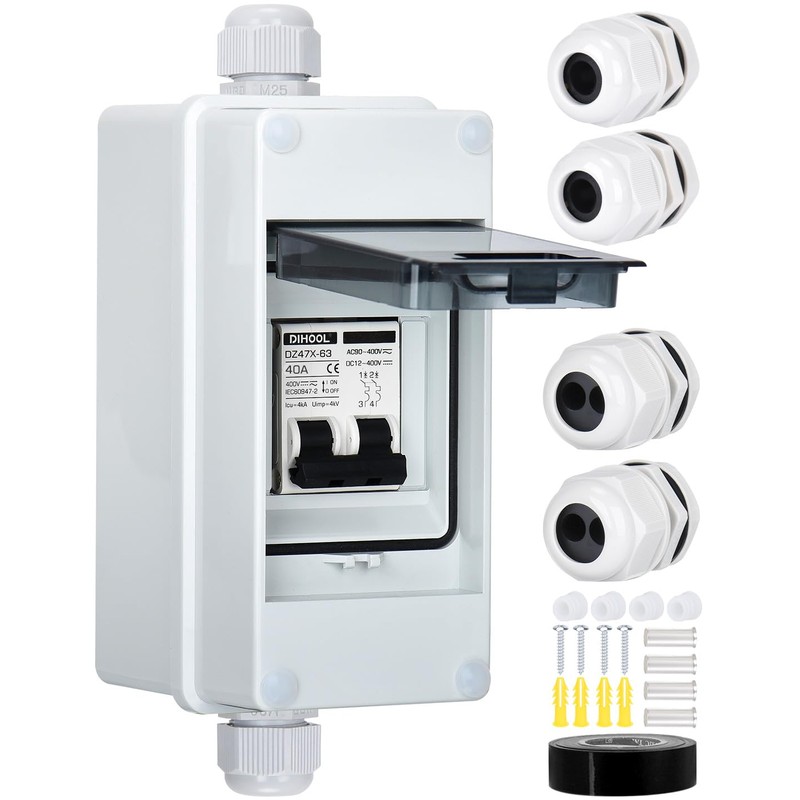

Circuit breakers DZ47X are used in AC and DC circuits. Suitable for switchgear between 12~400V DC and 90~400V AC, widely used to protect the circuit between solar panel and controller. This product consists of a waterproof box, two MG25 2-hole cable glands and a circuit breaker. IP65 waterproof and dustproof. Suitable for indoor and outdoor gutters, distributors, under solar panels, warehouses and other rooms.

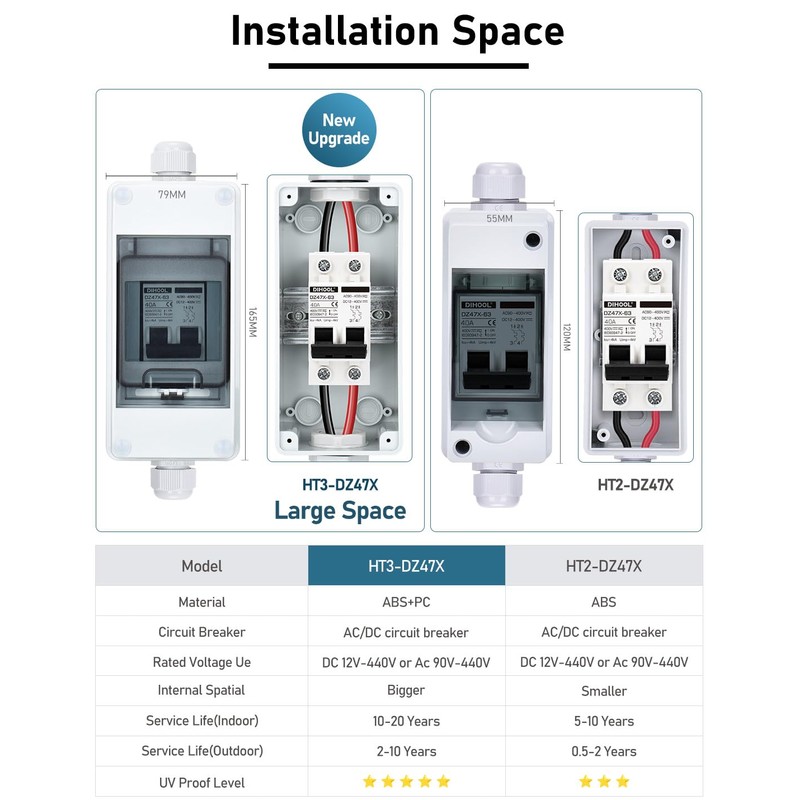

It provides more internal wiring space than the HT2 series. If you still need more wiring space, please choose HA4 DZ47X series
