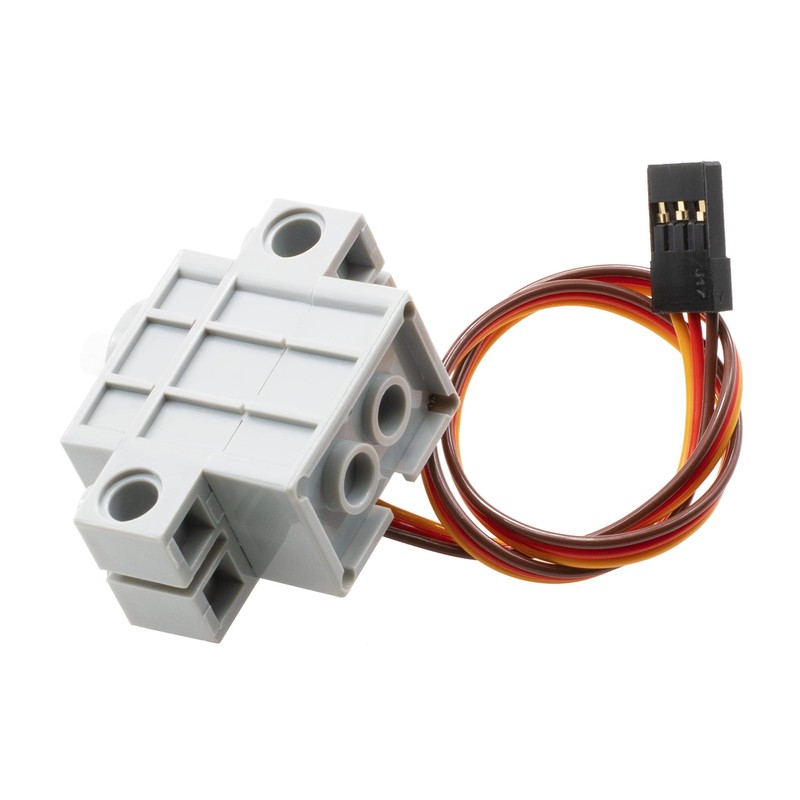

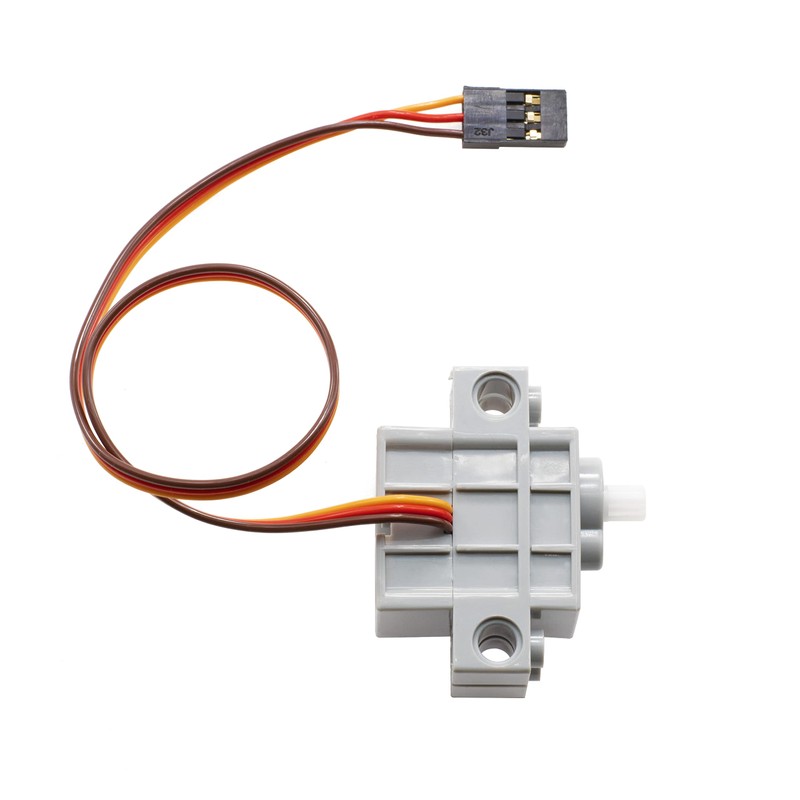

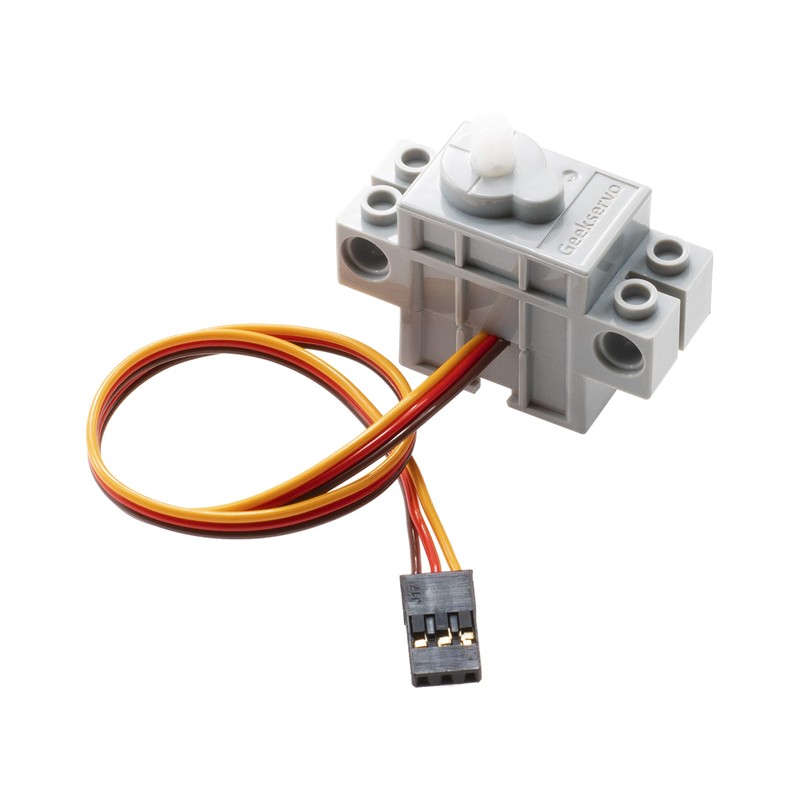

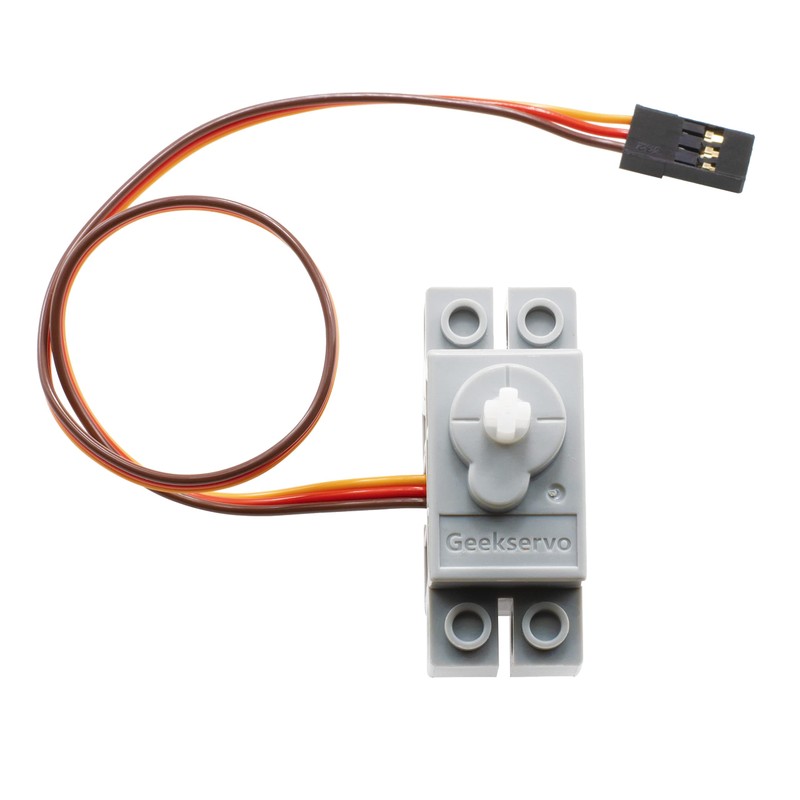

SEENGREAT Geek Servo Programmable Servo Compatible with Standard Building Blocks and Micro for Bit/Ardui/Raspberry Pi Mini Cross Output Shaft 270 Degree Rotation 4pcs servo
$74.10
-
Arrives
- Compact size. Classic 9g motor, 14g servo. It is made of environment-friendly POM plastic, which is small, light and not easy to be damaged
- The internal integrated reduction gear can increase the torque
- Strong compatibility. Compatible with standard building blocks and Microbit. Programmable motors and servos, free splicing, let you enjoy more fun
- Multiple motors and servos can be used to build blocks, and DIY a variety of shapes
- Difference Between Servo And Motor: Maximum travel of grey servo is about 270°, red motor is 360°. The grey servo has 3-pin 2.54mm Dupont cable header, red motor is 2-pin 2.54mm Dupont cable header. The Operating Voltage of grey servo is 4.8V-6V, red motor is 3V.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Compact size. Classic 9g motor, 14g servo. It is made of environment-friendly POM plastic, which is small, light and not easy to be damaged
- The internal integrated reduction gear can increase the torque
- Strong compatibility. Compatible with standard building blocks and Microbit. Programmable motors and servos, free splicing, let you enjoy more fun
- Multiple motors and servos can be used to build blocks, and DIY a variety of shapes
- Difference Between Servo And Motor: Maximum travel of grey servo is about 270°, red motor is 360°. The grey servo has 3-pin 2.54mm Dupont cable header, red motor is 2-pin 2.54mm Dupont cable header. The Operating Voltage of grey servo is 4.8V-6V, red motor is 3V.

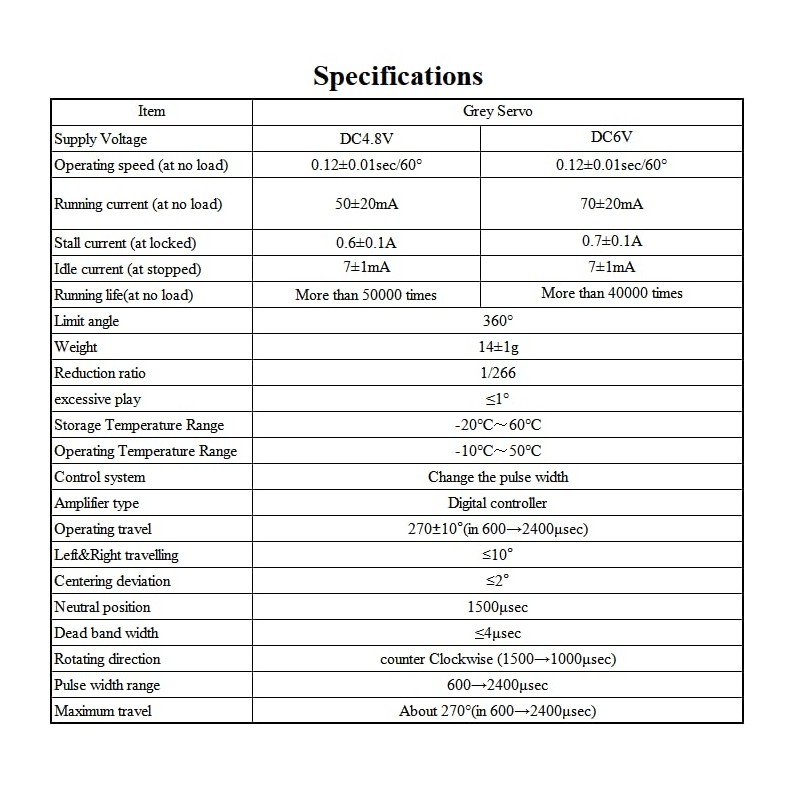

Supply voltage: DC4.8V~DC6V.
Storage temperature range: -20℃~60℃.
Operating temperature range: -10℃~50℃.
Operating speed (at no load): DC4.8V test 0.12±0.01sec/60° DC6V test 0.10±0. 01 sec/60°.
Running current (at no load): DC4.8V test 50±20mA DC6V test 70±20mA
Stable torque (at locked): DC4.8V test 0.9±0.2 kg-cm DC6V test 1.0±0.2kg-cm.
Stall current (at locked): DC4.8V test 0.6±0.1A DC6V test 0.7±0.1A.
Idle current (at stopped): DC4.8V test 7±1mA DC6V test 7±1mA
Running life (at no load): DC4.8V test >50000 times DC6V test >40000 times.
Limit angle: 360°.
Weight: 14 ± 1 g.
Reduction ratio: 1/266.
Excessive play: ≤1°.
Control system: Change the pulse width.
Amplifier type: Digital controller.
Operating travel: 270°±10°(600→2400μsec).
Left and right travelling: ≤10°.
Centering deviation: ≤ 2°.
Neutral position: 1500μsec.
Dead band width: ≤ 4μsec.
Rotating direction: counter clockwise (1500 - 1000 μsec).
Pulse width range: 600 - 2400 μsec.
Maximum travel: About270° (600 → 2400 μsec).
Description of red motor
Operating voltage range: 3 V.
Storage temperature range: -20℃~60℃.
Operating temperature range: -10℃~50℃.
Operating speed (at no load): 70±5r/min.
Running current (at no load): 70±20mA.
Stable torque (at locked): 0.5±0.1 kg-cm.
Stable current (at locked): 0.8±0.1A.
Idle current (at stopped): 7±1mA.
Running life (at no load): >200 hours.
Limit angle: 360°.
Weight: 9±1g.
Reduction ratio: 1/266.
Excessive play: ≤1°.
Control system: Voltage control.
Operating travel: 360°.
Rotating direction: Clockwise
Maximum travel: 360°.
Package contents:

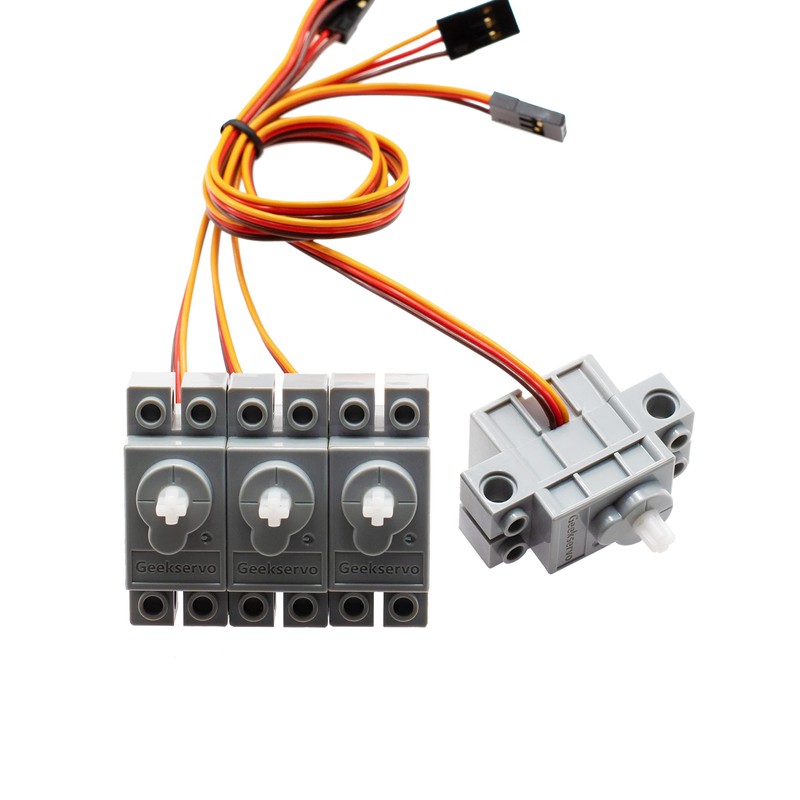

1. Grey Geek Servo B01 x4.
