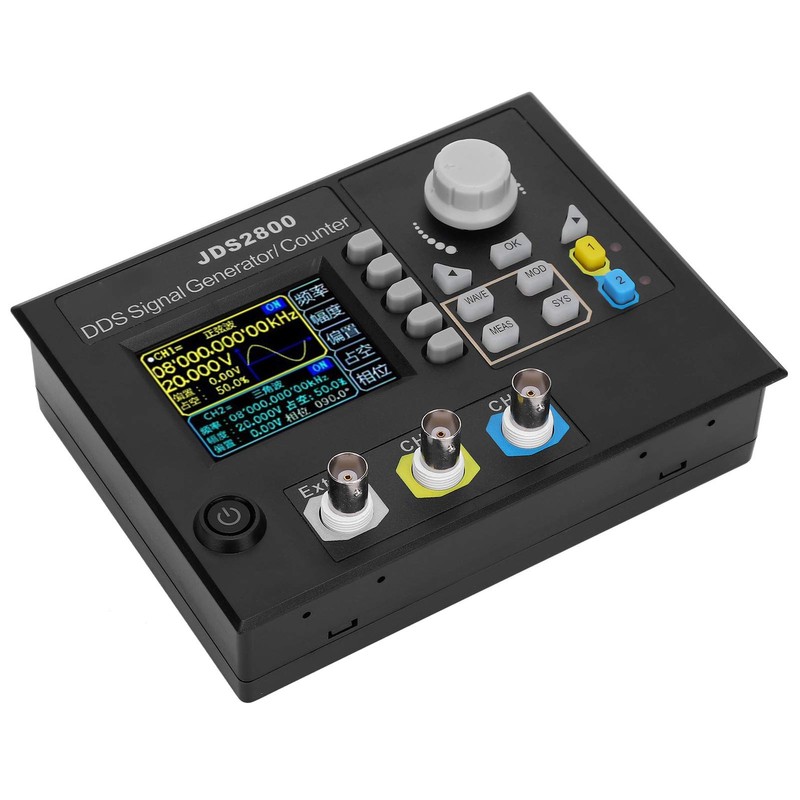

Walfront JDS2800-15MHz Function Generator 2.4in LCD DDS Channel Source Function Generator Frequency Analyzer AC100-240V (US Plug)
Walfront JDS2800-15MHz Function Generator 2.4in LCD DDS Channel Source Function Generator Frequency Analyzer AC100-240V (US Plug)
Walfront JDS2800-15MHz Function Generator 2.4in LCD DDS Channel Source Function Generator Frequency Analyzer AC100-240V (US Plug)
Product Overview
- Storage And Loading: Quantity: 100 Groups. Location: 00 - 99. Arbitrary Waveform: Quantity: 60 groups from 1 to 60. Burst Function: Number of Pulses: 1-1048575. Burst Mode: Manual , CH2 , External (AC), External (DC). General Technical Specifications: Display Type: 2.4in TFT Color LCD Display.

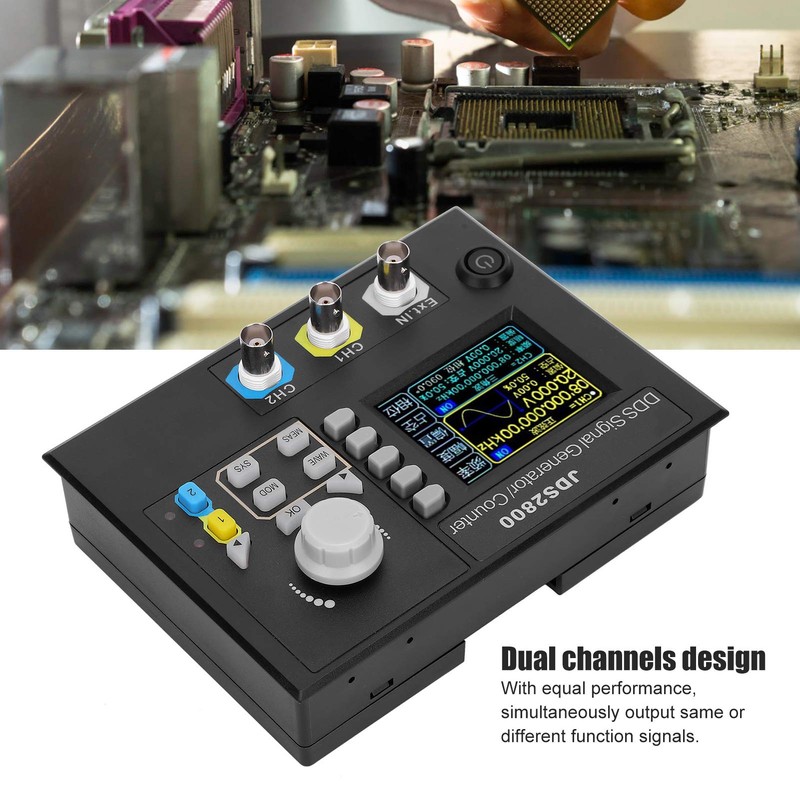

- The pulse width and pulse cycle time of the pulse waves can be digitally adjusted accurately.Dual channels with equal performance can simultaneously output the same or different function or arbitrary wavesform .
- Adopting 2.4‑inch high‑definition color LCD display, smooth and quick response speed. With silicone shortcut keys, it feels comfortable and simplifies the steps.It adopts high‑quality flame‑retardant shell, which is beautiful and easy to integrate into equipment such as experiment bench.
- Interface: Interface Mode: Using USB to serial interface. Expansion Interface: Serial port with TTL level mode, convenient for users to develop. Communication Rate: Using Standard 115200bps. Communication Protocol: Using commands line mode, the protocol is open. Voltage: Input: AC100-240V (50/60Hz). Output: DC5V±0.5V. Environmental Conditions: Temperature: 0-40 ℃; Humidity: <80%.
- Waveform Types: Sine waves, waves, pulse waves, triangular waves, partial sine waves, CMOS waves, DC level, half waves, full waves, positive staircase waves, inverse staircase waves, noise waves, exponential rise, exponential fall, multisonic waves, Sinker pulse, Lorentz pulse, and 60 user-defined waveforms.
| Brand: | Walfront |
|---|---|
| Size: | US Plug |
| Color: | Black |
| Manufacturer: | Walfront |
| Part Number: | 5LTC64R |
| Material Type: | Material |
| Isin: | IGHVYYE1HTGU |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
Product Overview
- Storage And Loading: Quantity: 100 Groups. Location: 00 - 99. Arbitrary Waveform: Quantity: 60 groups from 1 to 60. Burst Function: Number of Pulses: 1-1048575. Burst Mode: Manual , CH2 , External (AC), External (DC). General Technical Specifications: Display Type: 2.4in TFT Color LCD Display.
- The pulse width and pulse cycle time of the pulse waves can be digitally adjusted accurately.Dual channels with equal performance can simultaneously output the same or different function or arbitrary wavesform .
- Adopting 2.4‑inch high‑definition color LCD display, smooth and quick response speed. With silicone shortcut keys, it feels comfortable and simplifies the steps.It adopts high‑quality flame‑retardant shell, which is beautiful and easy to integrate into equipment such as experiment bench.
- Interface: Interface Mode: Using USB to serial interface. Expansion Interface: Serial port with TTL level mode, convenient for users to develop. Communication Rate: Using Standard 115200bps. Communication Protocol: Using commands line mode, the protocol is open. Voltage: Input: AC100-240V (50/60Hz). Output: DC5V±0.5V. Environmental Conditions: Temperature: 0-40 ℃; Humidity: <80%.
- Waveform Types: Sine waves, waves, pulse waves, triangular waves, partial sine waves, CMOS waves, DC level, half waves, full waves, positive staircase waves, inverse staircase waves, noise waves, exponential rise, exponential fall, multisonic waves, Sinker pulse, Lorentz pulse, and 60 user-defined waveforms.
| Brand: | Walfront |
|---|---|
| Size: | US Plug |
| Color: | Black |
| Manufacturer: | Walfront |
| Part Number: | 5LTC64R |
| Material Type: | Material |
| Isin: | IGHVYYE1HTGU |
Condition: Brand New
Item Type: Generator
Material: Silicone, ABS (Flame Retardant)
Model: JDS2800-15MHz
Frequency Characteristics:
Sine Waves Frequency Range: 0-15MHz
Waves Frequency Range: 0-15MHz
Triangular Waves Frequency Range: 0-15MHz
Pulse Waves Frequency Range: 0-6MHz
TTL Digital Waves Frequency Range: 0-6MHz
Arbitrary Waves Frequency Range: 0-6MHz
Pulse Width Adjustment Range: 100nS-4000S
Waves Rise Time: ?25ns
Minimum Frequency Resolution: 0.01?Hz (0.00000001)
Frequency Accuracy: ±20ppm
Frequency Stability: ±1ppm/3 Hours
Waves Length: 2048 Points
Waveform Sampling Rate: 266MSa/S
Waveform Vertical Resolution: 14 Bits
Sine Waves:
Harmonic Suppression: ?45dBc(<1MHz); ?40dBc(1 MHz~20MHz)
Total Harmonic Distortion: <0.8% (20Hz~20kHz, 0dBm)
Waves And Pulse Waves: Overshoot?5%
Pulse Waves Duty Cycle Adjustment Range: 0.1%-99.9%
Partial Sine Waves Duty Cycle Adjustment Range: 0.1%-99.9%
Sawtooth Waves Linearity: ?98% (0.01Hz-10kHz)
Output Characteristics:
Amplitude Resolution: 1mV
Amplitude Stability: ±0.5%/5 Hours
Amplitude Flatness: ±5% (<10MHz); ±10% (>10MHz)

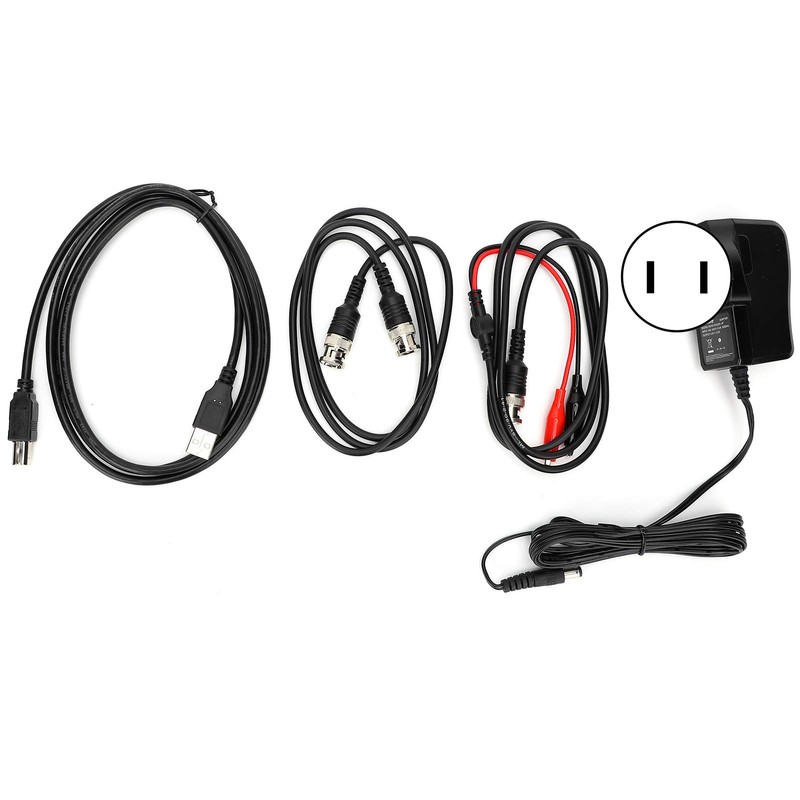

Package List:
1 x Generator
1 x Power Adapter
1 x USB Cable
1 x Connection Cable
1 x English Manual
1 x CD
1 x BNC Cable
